Product Description:
BTA Deep Hole Drilling Overview
BTA Deep Hole Drilling is a metal cutting technique known for its high efficiency in creating deep holes. This process is typically employed when the depth-to-diameter ratio of the hole exceeds 10:1. The acronym BTA stands for Boring and Trepanning Association, representing a specific drilling approach widely utilized in various sectors including oil and gas, aerospace, mold making, hydraulic cylinders, gun barrels, and heavy machinery applications.
Features:
Key Features
Feature: Deep Drilling Capability
Description: Capable of drilling holes several meters deep, with depth-to-diameter ratios of 100:1 or more.
Feature: Efficient Chip Evacuation
Description: Chips are removed internally, minimizing clogging and improving stability.
Feature: High Productivity
Description: Faster cutting speeds compared to gun drilling, ideal for diameters over Ø20mm.
Feature: Excellent Hole Quality
Description: Produces holes with superior roundness, straightness, and surface finish.
Feature: Versatile Material Compatibility
Description: Suitable for machining a wide range of materials including steel, alloys, and stainless steel.
Technical Parameters:
|
Diameter range(mm) |
inserts |
APMX(mm) | |
43.01-58.00 |
TXN160408 |
6.0 | |
65.00-85.00 |
TXN250408 |
10.0 | |
90.00-120.00 |
TXN400708 |
13.0 | |
Applications:
Typical Applications
Oil & Gas applications involve the drilling of various components such as drill collars, tubing, and casing to support operations within the industry.
In the field of Hydraulics, machining processes are carried out to create precise hydraulic cylinder bores which are critical for the functioning of hydraulic systems.
For Defense & Firearms industries, precision is key in the manufacturing of gun barrels and artillery tubes to ensure safety and optimal performance of firearms.
Within the Mold & Die sector, the machining of deep guide holes in large molds is a common practice to achieve intricate designs and shapes for various manufacturing purposes.
Heavy Machinery applications often require machining processes for tasks such as main shaft or heat exchanger plate drilling to maintain and enhance the efficiency and durability of machinery components.
FAQ:
Q: What is the brand name of this drilling product?
A: The brand name of this drilling product is ARNOLD.
Q: Where is this drilling product manufactured?
A: This drilling product is manufactured in China.
Q: Does this drilling product come with any certification?
A: Yes, this drilling product is certified with ISO9001:2000.
Q: What is the minimum order quantity for this drilling product?
A: The minimum order quantity for this drilling product is 2.
Q: Can the price of this drilling product be negotiated?
A: Yes, the price of this drilling product is negotiable.
Product Tags:
|
|

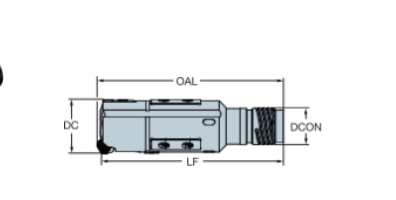

60HRC Hardness BTA Drilling Cutting Tool 1000mm Drilling Depth Range Images
|
