Product Description:
Corner Radius End Mills offer a unique combination of the strength of a flat end mill and the performance advantages of a rounded edge. By dispersing cutting forces evenly, the corner radius helps to minimize stress concentrations and prolong tool life. These end mills are well-suited for high-speed cutting of hard materials, enhancing tool durability and delivering smoother surface finishes.
Features:
Advantages of Corner Radius End Mills
Increased Tool Strength:
The rounded corners reduce stress concentration, minimizing the risk of breakage and improving tool rigidity.
Improved Surface Finish:
The smooth radius at the corners creates cleaner cuts and better surface quality, especially in finishing operations.
Reduced Chipping and Wear:
Corner radii help prevent edge chipping, especially when cutting harder or abrasive materials.
Longer Tool Life:
With less wear and breakage, these tools last longer, reducing tool replacement frequency and machine downtime.
Higher Feed Rates:
The added edge strength allows for more aggressive cutting parameters, increasing productivity.
Ideal for 3D Contouring and Mold Making:
Perfect for applications that require strong edges and smooth transitions, such as mold cavities, dies, and complex profiles.

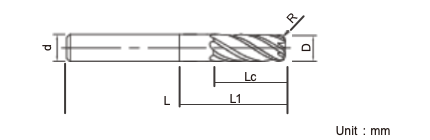

Technical Parameters:
| Type No. | Diameter | Corner R | Flute length | Effective length | Overall length | Shank Dia | Flutes | | NRC0610 | D6 | R1 | 6 | 20 | L60 | 6 | 5 | | NRC0615 | D6 | R1.5 | 6 | 20 | L60 | 6 | 5 | | NRC0620 | D6 | R2 | 6 | 20 | L60 | 6 | 5 | | NRC0810 | D8 | R1 | 8 | 24 | L60 | 8 | 5 | | NRC0815 | D8 | R1.5 | 8 | 24 | L60 | 8 | 5 | | NRC0820 | D8 | R2 | 8 | 24 | L60 | 8 | 5 | | NRC1010 | D10 | R1 | 10 | 30 | L75 | 10 | 5 | | NRC1015 | D10 | R1.5 | 10 | 30 | L75 | 10 | 5 | | NRC1020 | D10 | R2 | 10 | 30 | L75 | 10 | 5 | | NRC1210 | D12 | R1 | 12 | 36 | L100 | 12 | 5 | | NRC1215 | D12 | R1.5 | 12 | 36 | L100 | 12 | 5 | | NRC1220 | D12 | R2 | 12 | 36 | L100 | 12 | 5 | |
Applications:
Applications of Corner Radius End Mills
Mold and Die Making
Ideal for machining cavities, cores, and mold components with improved edge strength and surface finish.
3D Contour Milling
Suitable for complex surface machining where smooth transitions and radius edges are required.
General Profiling and Finishing
Used in profiling operations where enhanced tool life and precision are needed.
Pocketing with Radius Corners
Perfect for creating pockets and slots with rounded internal corners, reducing stress in the part.
High-Speed Machining (HSM)
Well-suited for high-speed applications in hardened steels and other tough materials.
Aerospace and Automotive Parts
Commonly used in machining high-performance components where fatigue resistance and surface integrity matter.
Tool and Fixture Production
Provides durable cutting performance when producing jigs, fixtures, and dies.
Machining of Hardened Materials
Effective in cutting hard alloys while minimizing wear and tool failure.
Packing and Shipping:
Product Name: Corner Radius End Mills
Description: High-quality corner radius end mills for precision cutting.
Package Includes: Set of 5 corner radius end mills
Shipping: This product will be carefully packaged to ensure safe delivery to your doorstep.
