The drill body is the principal structural component of a drill bit, apart from the cutting edge and the shank. Its primary functions are to provide support for the cutting portion, transmit the drilling force, and aid in ejecting chips while in operation.
Typically, the drill body possesses various elements such as flutes to facilitate chip removal, margins for direction, and a core for reinforcement. Depending on the design, it may also include coolant channels to enhance drilling efficiency and prolong tool life.
Materials commonly used for drill bodies comprise high-speed steel (HSS), carbide, and coated alloys. The drill body plays a pivotal role in ensuring stability, precision, and effectiveness throughout the drilling procedures.
Features:
Key Features
· Spiral Flutes: Efficient chip removal and smooth drilling.
· Strong Core: Ensures structural rigidity and reduces breakage.
· Precision Margins: Improve hole accuracy and reduce vibration.
· Optional Coolant Channels: Enhance heat dissipation in high-speed drilling.
Main Advantages
· Stable Performance: Maintains alignment during drilling.
· High Durability: Made from wear-resistant materials like HSS or carbide.
· Versatile Design: Suitable for various materials and machining environments.
· Improved Productivity: Supports higher cutting speeds and longer tool life.
Technical Parameters:

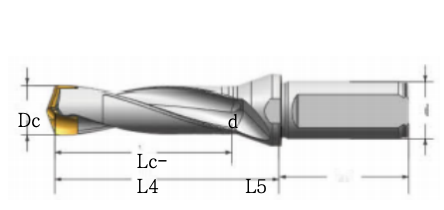

| Order Code | Lc mm | L4 mm | L5 mm | d mm | Seat size | Dc | Dc max | | EP-G88110-125-B16 EP-G88110-13-B16 EP-G88110-135-B16 | 145 145 145 | 155 155 | 48 | 16 | C | 12.50 | 13.00 | | 48 | 16 | C | 13.00 | 13.50 | | 155 | 48 | 16 | C | 13.50 | 13.50 | | EP-G88110-136-B16 | 156 | 165 | 48 | 16 | B | 13.51 | 14.00 | | EP-G88110-14-B16 | 156 | 165 | 48 | 16 | B | 14.00 | 14.50 | | EP-G88110-145-B20 | 156 | 165 | 48 | 20 | B | 14.50 | 14.50 | | EP-G88110-146-B20 | 169 | 180 | 50 | 20 | A | 14.51 | 15.00 | | EP-G88110-15-B20 | 169 | 180 | 50 | 20 | A | 15.00 | 15.50 | | EP-G88110-155-B20 | 169 | 180 | 50 | 20 | A | 15.50 | 15.87 | | EP-G88110-16-B20 | 190 | 202 | 50 | 20 | 1 | 15.88 | 17.00 | | EP-G88110-17-B20 | 190 | 202 | 50 | 20 | 1 | 17.00 | 18.00 | | EP-G88110-18-B20 | 190 | 202 | 50 | 20 | 1 | 18.00 | 18.00 | | EP-G88110-181-B25 | 214 | 229 | 56 | 25 | 2 | 18.01 | 19.00 | | EP-G88110-19-B25 | 214 | 229 | 56 | 25 | 2 | 19.00 | 19.99 | | EP-G88110-20-B25 | 235 | 249 | 56 | 25 | 3 | 20.00 | 21.00 | | EP-G88110-21-B25 | 235 | 249 | 56 | 25 | 3 | 21.00 | 22.00 | | EP-G88110-22-B25 | 235 | 249 | 56 | 25 | 3 | 22.00 | 22.00 | | EP-G88110-221-B25 | 257 | 270 | 56 | 25 | 4 | 22.01 | 23.00 | | EP-G88110-23-B25 | 257 | 270 | 56 | 25 | 4 | 23.00 | 24.00 | | EP-G88110-24-B25 | 257 | 270 | 56 | 25 | 4 | 24.00 | 24.00 | | EP-G88110-241-B32 | 282 | 300 | 60 | 32 | 5 | 24.01 | 25.00 | | EP-G88110-25-B32 | 282 | 300 | 60 | 32 | 5 | 25.00 | 26.00 | | EP-G88110-26-B32 | 282 | 300 | 60 | 32 | 5 | 26.00 | 26.00 | | EP-G88110-261-B32 | 302 | 319 | 60 | 32 | 6 | 26.01 | 27.00 | | EP-G88110-27-B32 | 302 | 319 | 60 | 32 | 6 | 27.00 | 28.00 | | EP-G88110-28-B32 | 302 | 319 | 60 | 32 | 6 | 28.00 | 28.00 | | EP-G88110-281-B32 | 323 | 339 | 60 | 32 | 7 | 28.01 | 29.00 | | EP-G88110-29-B32 | 323 | 339 | 60 | 32 | 7 | 29.00 | 30.00 | | EP-G88110-30-B32 EP-G88110-301-B32 | 323 | 339 | 60 | 32 | 7 | 30.00 | 30.00 | | 348 | 365 | 60 | 32 | 8 | 30.01 | 31.00 | | EP-G88110-31-B32 | 348 | 365 | 60 | 32 | 8 | 31.00 | 32.00 | | EP-G88110-32-B32 | 348 | 365 | 60 | 32 | 8 | 32.00 | 32.00 | | EP-G88110-321-B40 | 367 | 390 | 70 | 40 | 9 | 32.01 | 33.00 | | EP-G88110-33-B40 | 367 | 390 | 70 | 40 | 9 | 33.00 | 34.00 | | EP-G88110-34-B40 | 367 | 390 | 70 | 40 | 9 | 34.00 | 35.00 | | EP-G88110-35-B40 | 389 | 411 | 70 | 40 | 9 | 35.00 | 36.00 | | EP-G88110-36-B40 | 389 | 411 | 70 | 40 | 9 | 36.00 | 36.00 | | EP-G88110-361-B40 | 412 | 433 | 70 | 40 | 10 | 36.01 | 37.00 | | EP-G88110-37-B40 | 412 | 433 | 70 | 40 | 10 | 37.00 | 38.00 | | EP-G88110-38-B40 EP-G88110-39-B40 EP-G88110-40-B40 EP-G88110-41-B40 EP-G88110-42-B40 | 412 435 435 463 463 | 433 | 70 | 40 | 10 | 38.00 | 39.00 | | 455 | 70 | 40 | 10 | 39.00 | 40.00 | | 455 483 | 70 | 40 | 10 | 40.00 | 41.00 | | 70 | 40 | 10 | 41.00 | 42.00 | | 483 | 70 | 40 | 10 | 42.00 | 42.00 | |
Applications:
Application Areas of Drill Body
1. Mechanical Manufacturing
- Drilling metal components
- High-precision drilling in CNC machining
- Used in automotive, machine tools, and industrial equipment production
2. Aerospace Industry
- Drilling structural parts made of titanium or composites
- Deep hole drilling with high heat and stability requirements
3. Construction and Structural Engineering
- Drilling in concrete, brick, and other hard materials
- Used for installation, reinforcement, or cable passage holes
4. Mold and Precision Machining
- Drilling mold cavities, cooling channels, and other complex shapes
- Suitable for small-diameter, high-precision drilling
5. Electrical and Electronics
- Micro-hole drilling in printed circuit boards (PCBs) or connectors
- Requires high drilling accuracy and surface finish
6. Oil and Mining Equipment
- Part of specialized drilling tools such as core drills
- Operates in high-impact, high-temperature, and high-torque environments
