Product Description:
BTA Deep Hole Drilling is a method used to drill very deep and straight holes in metal parts, usually when the hole is much deeper than its diameter. It is named after the Boring and Trepanning Association.
In this process, high-pressure coolant flows around the outside of a special drill tube, goes to the cutting area, and pushes the chips (metal pieces) out through the center of the drill. This makes the drilling clean, fast, and accurate.
BTA drilling is often used in industries like oil & gas, aerospace, and hydraulic systems to make deep holes in things like gun barrels, hydraulic cylinders, and machine parts. It works best for hole diameters above 20 mm and is known for high speed and smooth, straight holes.
Features:
Advantages of BTA Deep Hole Drilling
High Efficiency: Fast drilling speed, especially for large-diameter deep holes.
Excellent Hole Quality: Produces straight, round holes with smooth surface finish.
Good Chip Removal: Chips are flushed out through the inside, reducing blockages.
High Precision: Better control of hole diameter and alignment.
Suitable for Long Holes: Can drill very deep holes (over 100x the diameter).
Works on Tough Materials: Handles steel, stainless steel, and alloys well.
Stable Process: The rigid tool setup ensures consistent results.
Technical Parameters:

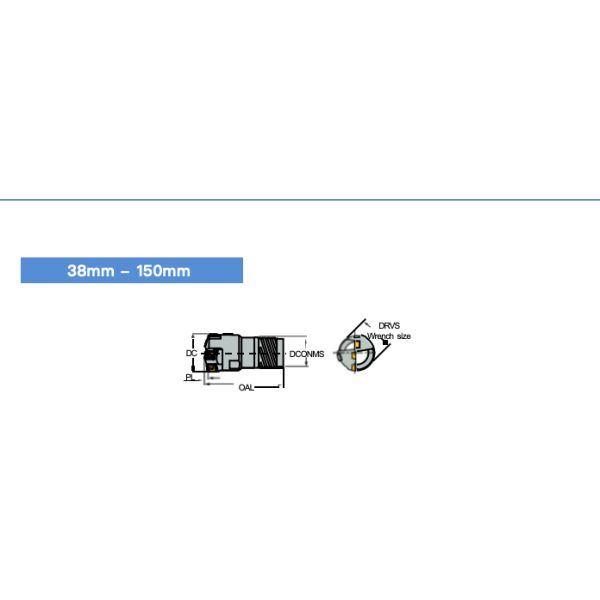

| Diameter range(mm) | Intermediate insert | Central insert | Peripheral insert | Guide Pad | | 38.00-39.99 | NPMX 06**R.. | NPMX 08*R.. | NPMX 08*R.. | GPS-08-25-155 | | 40.00-44.99 | NPMX 08**R.. | NPMX 08**R.. | TPMX 14**R.. | GPS-08-25-155 | | 45.00-47.99 | NPMX 08**R.. | TPMX 14**R.. | TPMX 14**R.. | GPS-10-35-200 | | 48.00-51.99 | TPMX 14**R.. | TPMX 14**R. | TPMX 14**R.. | GPS-10-35-200 | | 52.00-54.99 | TPMX 14**R.. | TPMX 14**R.. | TPMX 17**R.. | GPS-10-35-200 | | 55.00-57.99 | TPMX 14**R.. | TPMX 17**R.. | TPMX 17**R.. | GPS-10-35-200 | | 58.00-59.99 | TPMX 17**R.. | TPMX 17**R.. | TPMX 17**R.. | GPS-10-35-200 | | 60.00-63.99 | TPMX 17**R.. | TPMX 17**R.. | TPMX 17**R.. | GPS-14-40-250 | | 64.00-67.99 | TPMX 17**R.. | TPMX 17**R.. | TPMX 24**R.. | GPS-14-40-250 | | 68.00-77.99 | TPMX 24**R.. | TPMX 24**R.. | TPMX 17**R.. | GPS-14-40-250 | | 78.00-84.99 | TPMX 24**R.. | TPMX 24**R.. | TPMX 24**R.. | GPS-14-40-250 | | 85.00-91.99 | TPMX 24**R.. | TPMX 24**R.. | TPMX 28**R.. | GPS-14-40-250 | | 92.00-98.99 | TPMX 28**R.. | TPMX 28**R.. | TPMX 24**R.. | GPS-14-40-250 | | 99.00-106.99 | TPMX 28**R.. | TPMX 28**R.. | TPMX 28**R.. | GPS-18-40-300 | | 107.00-117.99 | TPMX 17**R.. | TPMX 24**R.. | TPMX 24**R.. | GPS-18-40-300 | | 118.00-135.99 | TPMX 24**R.. | TPMX 24**R.. | TPMX 24**R.. | GPS-18-40-300 | | 136.00-144.99 | TPMX 24**R.. | TPMX 28**R.. | TPMX 24**R.. | GPS-18-40-300 | | 145.00-150.99 | TPMX 24**R.. | TPMX 28**R.. | TPMX 24**R.. | GPS-18-40-300 | |
Applications:
Applications of BTA Deep Hole Drilling
Oil & Gas Industry
Drill collars, casing, tubing, and oil tool components.
Defense & Firearms
Gun barrels, cannon barrels, and military-grade tubes.
Mold & Die Making
Deep guide holes for mold bases and die components.
Hydraulic Systems
Hydraulic cylinder bores and piston rods.
Aerospace & Aviation
Long, precise holes in structural and engine parts.
Heavy Machinery
Machine spindles, rollers, and heat exchanger tube sheets.
Refrigeration & Heat Transfer Equipment
Tube plates and components with many deep holes.
